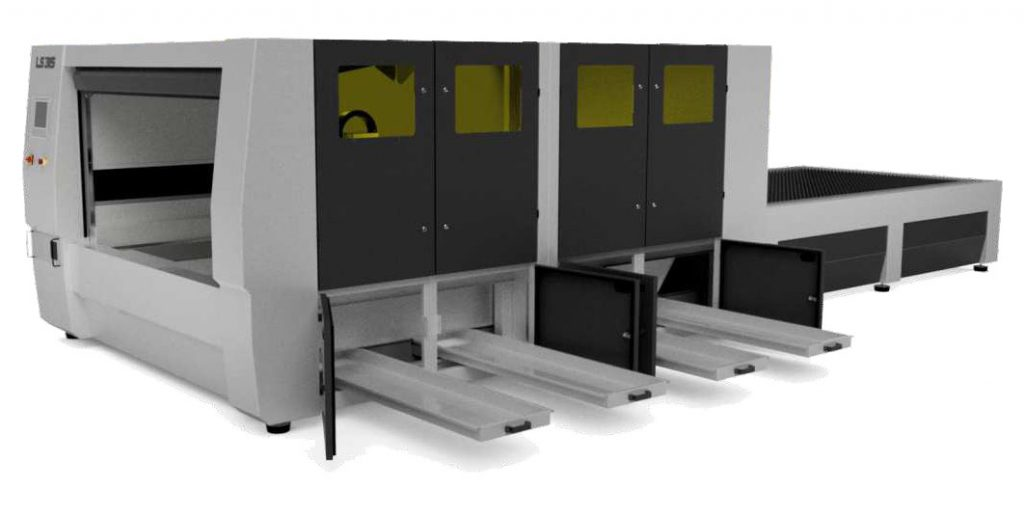

New high production models for cutting metals by fibre laser. Available in two standard sizes and also made to measure, our LS210 and LS315 models can be equipped with fibre laser power ratings between
1000w and 4000w with cutting capacity of carbon steels up to 15mm, stainless steels and aluminium with the advantage of the low maintenance of fibre lasers compared to CO2 lasers.
SPECIFICATIONS:
- TexComputer CNC control with touch screen.
- Rear loading table.
- Side chip and small parts removal trays.
- Linear guides with recirculating ball bearing slides, sealed and backlash free.
- High speed spindle drive with preloaded ball nuts.
- 70Kg/cm Lenze servo motors.
- Automatic self-lubrication on all axes.
- Travelling speed 80 metres/min.
- Resolution 0,001mm.
- Z head with height control.
- IPG fibre laser from 1000 to 4000w.
- PRECITEC laser head.
- Laser pointer for X,Y axis zeroing verification.
- Working dimensions LS315 3000x1500mm.
- Useful bridge height Z 100mm.
